CWD200T Crawler Mounted Water Well Drill Rig 2000m Depth 5500Nm Torque

CWD200T Crawler Mounted Water Well Drill Rig 2000m Depth 5500Nm Torque

Ονομασία μάρκας:	JCDRILL
Αριθμός μοντέλου:	CWD200T περιστροφικό νερό
MOQ:	1 σετ
τιμή:	Διαπραγματεύσιμα
Όροι πληρωμής:	L/C, T/T, Western Union
Ικανότητα εφοδιασμού:	σύνολα του 2000/έτος

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Κίνα

Πιστοποίηση:

CE， ISO

Διάμετρος οπών:

90-350mm

Βάθος οπών:

2000μ.

Ροπή:

5500nm

Ταχύτητα περιστροφής:

60-115rpm

Διάμετρος σωλήνα από τρυπάνι:

76/89/102mm

Μήκος σωλήνα τρυπανιού:

3000mm

Η γεωλογία διάτρητη:

Air DTH και λάσπη περιστροφική διάτρηση

Τύπος γεώτρησης:

DTH & MUD ROTARY DRIL RIG

Τύπος συμπιεστή:

Περιστροφική βίδα/κινητό συμπιεστή αέρα

Τύπος κινητήρα:

Yuchai Diesel Engine

Αντλία λάσπης:

Αντλία λάσπης BW250

Ονομα:

CWD200T Water Well Drill Rig

Συσκευασία λεπτομέρειες:

20GP

Δυνατότητα προσφοράς:

σύνολα του 2000/έτος

Επισημαίνω:

CWD200T crawler mounted water well drill

2000m depth borehole drilling rig

5500Nm torque water well drill

Περιγραφή του προϊόντος

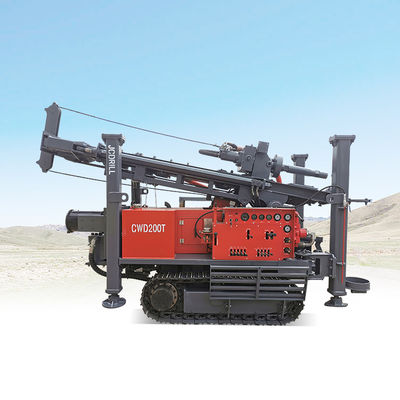

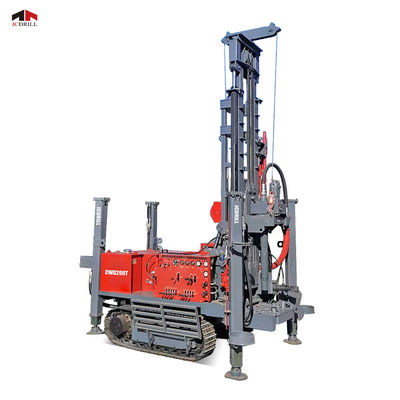

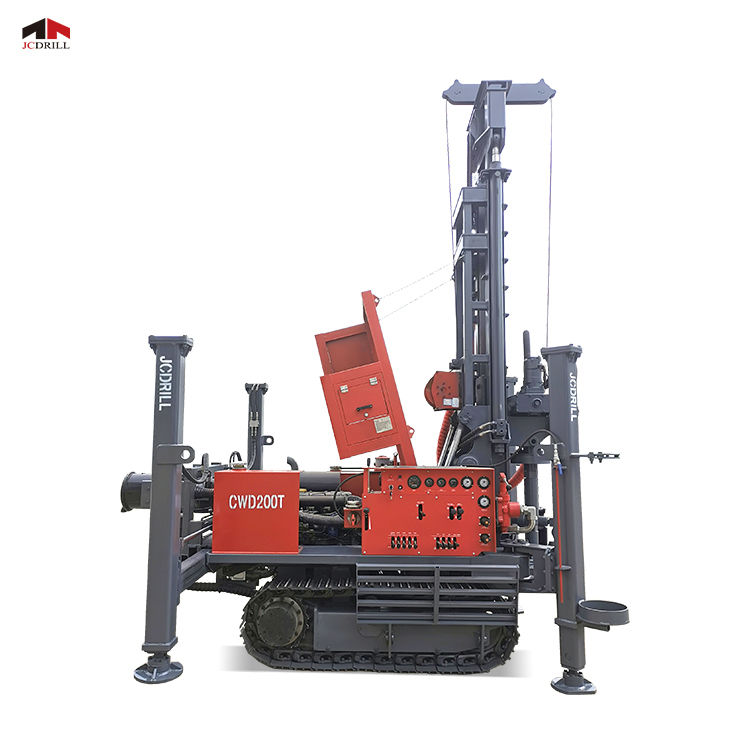

CWD200T Crawler Mounted Diesel Power Engine Water Well Drilling Rig

Key Specifications

Attribute	Value
Hole Diameter	90-350mm
Hole Depth	2000m
Torque	5500Nm
Rotation Speed	60-115rpm
Drill Pipe Diameter	76/89/102mm
Drill Pipe Length	3000mm
Geology Drilled	Air DTH and Mud rotary drilling
Drilling Type	DTH & Mud Rotary drill rig
Compressor Type	Rotary Screw/Movable air compressor
Engine Type	YUCHAI diesel engine
Mud Pump	BW250 mud pump

Product Overview

The CWD200T Crawler Mounted Rotary Water Well Drill Rig is designed for versatile drilling operations in various geological formations. It utilizes mud drilling for soft formations and air DTH hammer for rock drilling, with air pressure for slag discharge, offering significantly higher efficiency than traditional rotary drilling.

Key Features

Rotary head with two gears and stepless speed adjustment (60-115rpm) providing 5000-6500Nm torque
Regulatable pulling force for optimal deep hole drilling performance
Optional generator setup for welding and night work illumination
Main winch for high-efficiency drilling in mud rock and weathering formations
Hydraulic main drive system with hydraulic-controlled landing legs and drilling tower
Hydraulic auxiliary functions for guide extension, boom swing, boom lift, and guide dumping
Tools winch for auxiliary lifting and casing operations
Competitive pricing with low maintenance costs

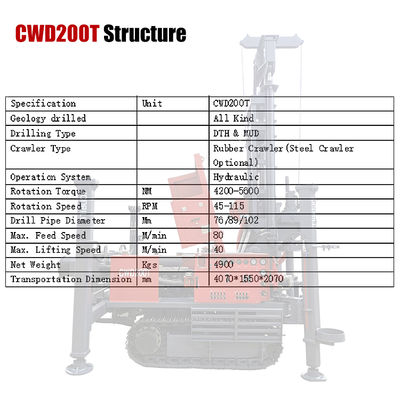

Technical Specifications

Specification	Unit	CWD200T
Geology drilled		All Kind
Drilling Type		DTH & MUD
Drill system and operation		Hydraulic
Hole Diameter	mm	Φ90--Φ350
Hole Depth	m	200
Rotation Torque	Nm	5500
Rotation Speed	rpm	60-115
Drill pipe diameter	mm	76/89/102
Drill pipe length	mm	3000
Max. Feed Speed	M/min	80
Max. Lifting Speed	M/min	40
Feed Stroke	mm	3600
Max. Pull back Capacity	T	12
Lifting force of Winch	T	1.2
Diesel Engine type		4Cylinder,water cooling
Diesel Engine Brand		YUNNEI
Rated Horse power	Kw	58
Pressure Required	Mpa	1.5-2.5
Air consumption	m³/min	15-30
Model		BW250
Displacement	L/Min	4
Net Weight	Kgs	5300
Transportation dimension	mm	407015502070
Work Dimension	mm	326023806190
Ground Clearance	mm	300

Package & Delivery

Our Comprehensive Services

Pre-sale Service

Our well-trained sales team and technical experts provide rational solutions tailored to your project requirements:

Model selection and equipment matching
Strong technical support
24-hour response to inquiries

Service During Sales

We maintain strict quality control from raw materials to finished products:

Custom design and manufacturing
Rigorous pre-delivery inspection
Regular production progress updates

After Sales Service

Comprehensive support throughout equipment lifespan:

Onsite debugging and training
Email, call, or onsite support
365×24 year-round service

Frequently Asked Questions

Are you original manufacturer? Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.	Which payment terms are available? T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.	Which Incoterms 2010 terms can we work? We accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.
How long will the delivery time take? Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.	How about after sales service? 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."	Spare Parts When You Need Them We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
